how to make a table saw using a circular saw

Are you a DIY enthusiast looking to save money and get creative with your tools? Have you ever wanted to make a table saw using just a circular saw but weren’t sure how it could be done? Well, look no further. In this blog post, we’ll guide you through the steps of making an effective table saw from one of the most common power tools in any workshop. You don’t have to spend hundreds on expensive machinery – all it takes is some plywood, screws and elbow grease. Follow our easy-to-understand instructions below for more information on how to make a table saw using just your trusty circular saw.

Table of Contents:

Gather the Materials

When it comes to making a table saw, the materials you need are essential. To get started, you’ll need some plywood – preferably 3/4-inch thick. The size of the plywood will depend on what type of table saw you’re building and how large your work area is. You’ll also need screws or nails to hold the pieces together, as well as glue for extra stability.

You may want to invest in a circular saw if you don’t already have one; this tool is invaluable for cutting through wood with precision and accuracy. If possible, try to find one with adjustable settings so that you can make cuts at different angles and depths depending on your project’s needs. Additionally, make sure that any blades used are sharpened properly before use for safety reasons.

Other tools needed include a drill (for drilling holes), clamps (to keep pieces in place while working), sandpaper (for smoothing out rough edges), measuring tape (to ensure accuracy when cutting) and safety goggles or glasses (to protect your eyes from flying debris). Depending on the complexity of your project, there may be other items necessary too – but these basics should cover most projects involving table saws.

Cut the Plywood

Measuring and cutting plywood for a table saw base can be intimidating, but with the right tools and knowledge, it doesn’t have to be. Before you start, make sure you have all of the necessary materials:

Plywood – You’ll need enough to cover the size of your table saw base.

Tape measure – This will help you accurately measure out how much plywood is needed.

Pencil or marker – Used to mark where cuts should be made on the plywood.

Circular saw – The most common tool used for cutting wood like this. Make sure it’s properly set up before use.

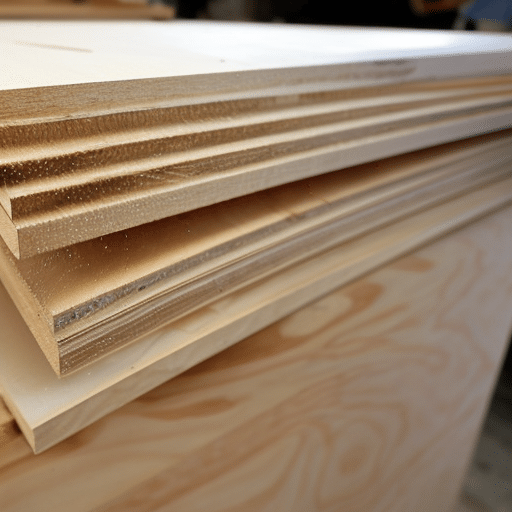

pile of plywood

Once everything is ready, begin by measuring how much plywood is needed for your project. Take into account any additional space that may need to be filled in later on, as well as the extra room around the edges of your table saw base if desired. Once measurements are taken, use a pencil or marker to draw lines along each side where cuts should be made using a circular saw. It’s important not to cut too close together, so there isn’t an uneven edge when finished; leave at least 1/4 inch between each line drawn for best results.

Now that all lines are marked off, turn on your circular saw and slowly move it along each line until they’re completely cut through. Don’t rush this step; be careful not to overcut either side, as this could lead to an uneven surface once assembled onto the table saw base itself. After all, pieces are cut correctly, sand down any rough edges with fine-grit sandpaper before attaching them together with screws or nails, depending on what type of material was used (plywood vs MDF).

Cutting the plywood is an important step in building your own table saw. With careful measurements and a sharp blade, you can create precise cuts that will serve as the foundation of your project. Now, it’s time to assemble the base for your new table saw.


Key Takeaway: Making a table saw using a circular saw is possible with the right tools and knowledge. Measure out how much plywood is needed, mark off where cuts should be made, cut slowly with the circular saw, and sand down any rough edges before attaching them together.

Assemble the Table Saw Base

Assembling the table saw base is an important step in building your own custom saw. Before you begin, make sure you have all of the necessary materials: screws, washers, nuts and bolts, a drill bit set and a screwdriver.

Start by laying out all of the pieces on a flat surface. Make sure they are properly aligned so that everything fits together correctly when assembled. Begin by attaching two of the legs to one side of the base using four screws per leg. Secure them tightly with washers and nuts or bolts as needed.

Next, attach two more legs to the other side of the base in the exactly same way as before – four screws per leg with washers and nuts or bolts if required for extra security. Now it’s time to attach the sides onto each end of your newly-assembled table saw base using eight screws total (four on each side). Again use washers and nuts or bolts where necessary for added stability.

Finally, use your drill bit set to carefully pre-drill holes into both ends of each side piece. Then attach them securely to either end of the table saw base frame using eight additional screws (four per side). Secure these sides firmly with washers and/or nuts or bolts, depending on what type you used previously throughout this process. And there you have it: a fully assembled table saw base.

With the table saw base assembled, it’s time to attach the circular saw and start using your new tool.

Attach the Circular Saw

an electric saw for carpenters

Attaching the circular saw to your table saw base is a simple process that requires only basic tools and materials. To get started, you’ll need a Phillips head screwdriver, four screws, and the circular saw itself.

First, line up the circular saw with the pre-drilled holes in the table saw base. Make sure it’s lined up correctly before proceeding. Once everything is aligned properly, insert each of the four screws into their respective holes and tighten them securely using your Phillips head screwdriver.

Next, attach any additional components, such as dust collection bags or hoses, if applicable to your model of a circular saw. This will help keep your work area clean while reducing airborne particles that can be hazardous to breathe in over time. Finally, plug in your power cord and turn on the switch to make sure everything is working properly before beginning any projects with it.

With these steps completed, you should now have a secure connection between your table saw base and its accompanying circular saw attachment, allowing for more accurate cuts when working on woodworking projects at home.

FAQs in Relation to How to Make a Table Saw Using a Circular Saw

Can I make my circular saw into a table saw?

Yes, you can convert your circular saw into a table saw. To do this, you will need to purchase a table saw conversion kit that is compatible with your model of circular saw. The kit should include all the necessary components, such as an adjustable fence and mitre gauge for accurate cutting. Additionally, it’s important to ensure the blade guard is in place and secure before using the converted table saw. With proper installation and safety precautions taken, you’ll be able to enjoy the precision and accuracy of a full-sized table saw from your compact circular saw.

Can I use a circular saw instead of a table saw?

Yes, you can use a circular saw instead of a table saw. Circular saws are more portable and easier to store than table saws, making them ideal for smaller DIY projects. They also tend to be cheaper than table saws and have fewer safety risks associated with their use. However, they do not provide the same level of accuracy or precision as a table saw would, so it is important to consider your project before deciding which type of saw is best for you.

How do you rig a circular saw as a table saw?

To rig a circular saw as a table saw, you’ll need to create a makeshift table for the saw. Start by finding two pieces of wood that are larger than your circular saw and attach them together with screws or nails. Make sure they’re level and stable. Next, attach the circular saw to the top of the table using bolts or clamps. Finally, adjust the blade guard so it’s parallel to your cutting surface and use a straight-edge guide to ensure accuracy when making cuts. With these steps complete, you can now safely use your circular saw as a makeshift table saw.

What can you use if you don’t have a table saw?

If you don’t have a table saw, there are several other tools that can be used to make cuts in wood. A circular saw is one of the most common alternatives and can easily cut through wood with the help of a guide rail or straight edge. Another option is a jigsaw, which allows for more intricate cuts but may require more time and patience. Finally, an oscillating multi-tool can also be used to make precise cuts in tight spaces where larger tools cannot fit. All three options will get the job done without needing access to a table saw.

Conclusion

Making a table saw using a circular saw is not as difficult as it may seem. With the right materials, some patience and careful measurements, you can have your own DIY table saw in no time. You’ll be able to make precise cuts with ease and save yourself money on expensive tools. Now that you know how to make a table saw using a circular saw, get out there and start building.
